はじめに

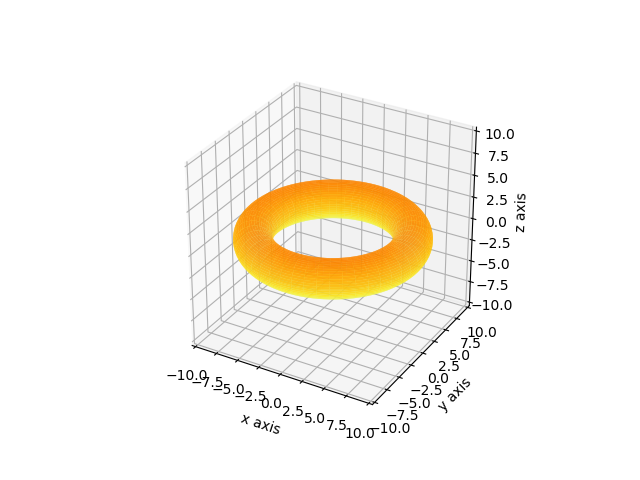

matplotlib mplot3dによる3Dグラフでトーラスを作成する。
コード
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
from matplotlib import cm
from mpl_toolkits.mplot3d import Axes3D
import matplotlib.pyplot as plt
import numpy as np
u=np.linspace(0,2*np.pi,100)
v=np.linspace(0,2*np.pi,100)
u,v=np.meshgrid(u,v)
a = 2
b = 9
X = (b + a*np.cos(u)) * np.cos(v)
Y = (b + a*np.cos(u)) * np.sin(v)
Z = a * np.sin(u)
fig = plt.figure(figsize=(6,6),dpi=130)
ax = fig.add_subplot(111, projection='3d')
ax.set_xlabel('x axis')
ax.set_ylabel('y axis')
ax.set_zlabel('z axis')
ax.set_xlim(-10,10)
ax.set_ylim(-10,10)
ax.set_zlim(-10,10)
ax.set_box_aspect((1,1,1))
ax.plot_surface(X, Y, Z,alpha=0.8, cmap=cm.Wistia)
fig.savefig("torus.png", dpi=130,bbox_inches = 'tight',transparent=True)
plt.show()

解説
モジュールのインポート
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
from matplotlib import cm
from mpl_toolkits.mplot3d import Axes3D
import matplotlib.pyplot as plt
import numpy as np
バージョン
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
#version
import matplotlib
print(matplotlib.__version__)
3.3.4
print(np.__version__)
1.20.1
データの生成
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
u=np.linspace(0,2*np.pi,100)
v=np.linspace(0,2*np.pi,100)
u,v=np.meshgrid(u,v)
a = 2
b = 9
X = (b + a*np.cos(u)) * np.cos(v)
Y = (b + a*np.cos(u)) * np.sin(v)
Z = a * np.sin(u)
トーラスは媒介変数でデータを生成するので、uとvを同じnp.linspace(0,2*np.pi,100)として、meshgrid化する。
トーラスは媒介変数で以下のようになる。ここでbはトーラス自体の大きい半径、aはトーラスの太さの半径となる。
x = (b+asin(u))cos(v)\\ y = (b+asin(u))sin(v)\\ z = asin(u)3Dグラフの設定
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
v=np.linspace(0,2*np.pi,100)
u,v=np.meshgrid(u,v)
軸範囲、軸ラベルの設定
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
ax.set_xlabel('x axis')
ax.set_ylabel('y axis')
ax.set_zlabel('z axis')
ax.set_xlim(-10,10)
ax.set_ylim(-10,10)
ax.set_zlim(-10,10)
ax.set_box_aspect((1,1,1))

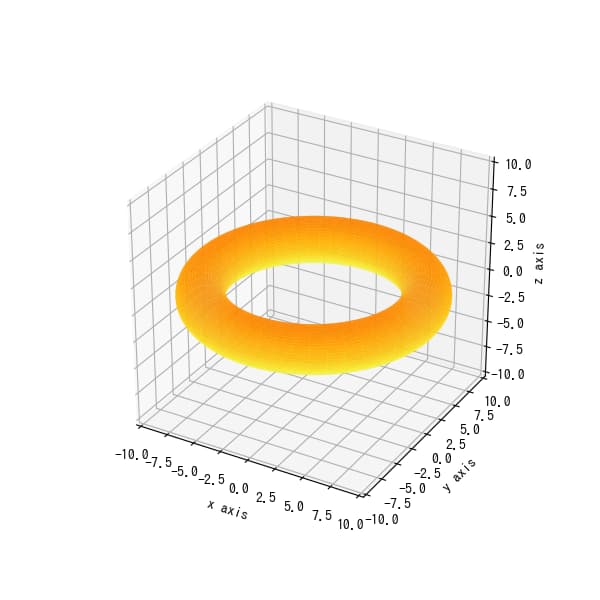

3Dグラフの表示
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
ax.plot_surface(X, Y, Z,alpha=0.8, cmap=cm.Wistia)
3Dグラフの保存
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
fig.savefig("torus.png", dpi=130,bbox_inches = 'tight',transparent=True)
コードをダウンロード(.pyファイル)
コードをダウンロード(.ipynbファイル)
